CAT 5e cable, named , is used for Internet and Ethernet cabling infrastructure. The cable standard provides up to 100 MHz performance and is suitable for most varieties of Ethernet over twisted pairs up to 1000BASE-T( Gigabit Ethernet). For more about its key features and applications, please check our complete guide to CAT5E.
What are CAT 5e used for?
Cat5e (Category 5 enhanced) cables are widely used in networking applications due to their capability to support higher bandwidths compared to the original Cat5 cables. Here are some common uses of Cat5e cables:
Home and Office Networks:
They are commonly used for Ethernet connections in both home and office settings, supporting activities like internet browsing, file sharing, media streaming, and VoIP services. Gigabit Ethernet:
Cat5e cables can handle network speeds of up to 1 Gigabit per second (Gbps), making them suitable for Gigabit Ethernet networks, although they are most commonly used for 100 Mbps or 1000 Mbps (1 Gbps) speeds. Voice and Data Transmission:
These cables are capable of transmitting both voice and data signals, and are often used in telephone systems and for other voice services.
Power over Ethernet (PoE):
Cat5e cables can be used for PoE applications, which allow network cables to carry electrical power, for devices such as network cameras, wireless access points, and VoIP phones. Multimedia Applications:
Their enhanced bandwidth capacity makes them suitable for multimedia applications, including streaming video and audio, in residential and commercial settings. Connecting Network Devices:
Cat5e cables are used to connect various network devices such as computers, routers, and switches within a Local Area Network (LAN).
CAT5e cable Speed
Cat5e (Category 5 enhanced) cables are designed to support higher speeds compared to standard Cat5 cables. The key speed specifications for Cat5e cables are:
Data Transfer Speed:
Cat5e cables can support network speeds up to 1 Gigabit per second (Gbps) at a standard distance of up to 100 meters (328 feet).
Frequency Bandwidth:
They offer a bandwidth capacity of up to 100 MHz, which is double that of the original Cat5 cables (which support up to 50 MHz). This increased bandwidth enables more efficient data transmission, allowing for higherspeed network connections.
These characteristics make Cat5e cables suitable for a variety of network applications, including home and office networking, internet browsing, file sharing, and streaming media, where high-speed data transfer is essential.
Specification/ Construction of CAT 5e cable 24 AWG Solid Copper
U/UTP:
the cable consists of 4 unshielded twisted pairs and no outer shielding
F/UTP:
the cable consists of 4 unshielded twisted pairs, however, it contains an outer foil shield SF/UTP:
the cable consists of 4 unshielded twisted pairs, however, it contains an outer foil shield and braiding U/UTP Dual PVC, PE, LSZH, CM,CMR, CMP avaible chose for Jacket

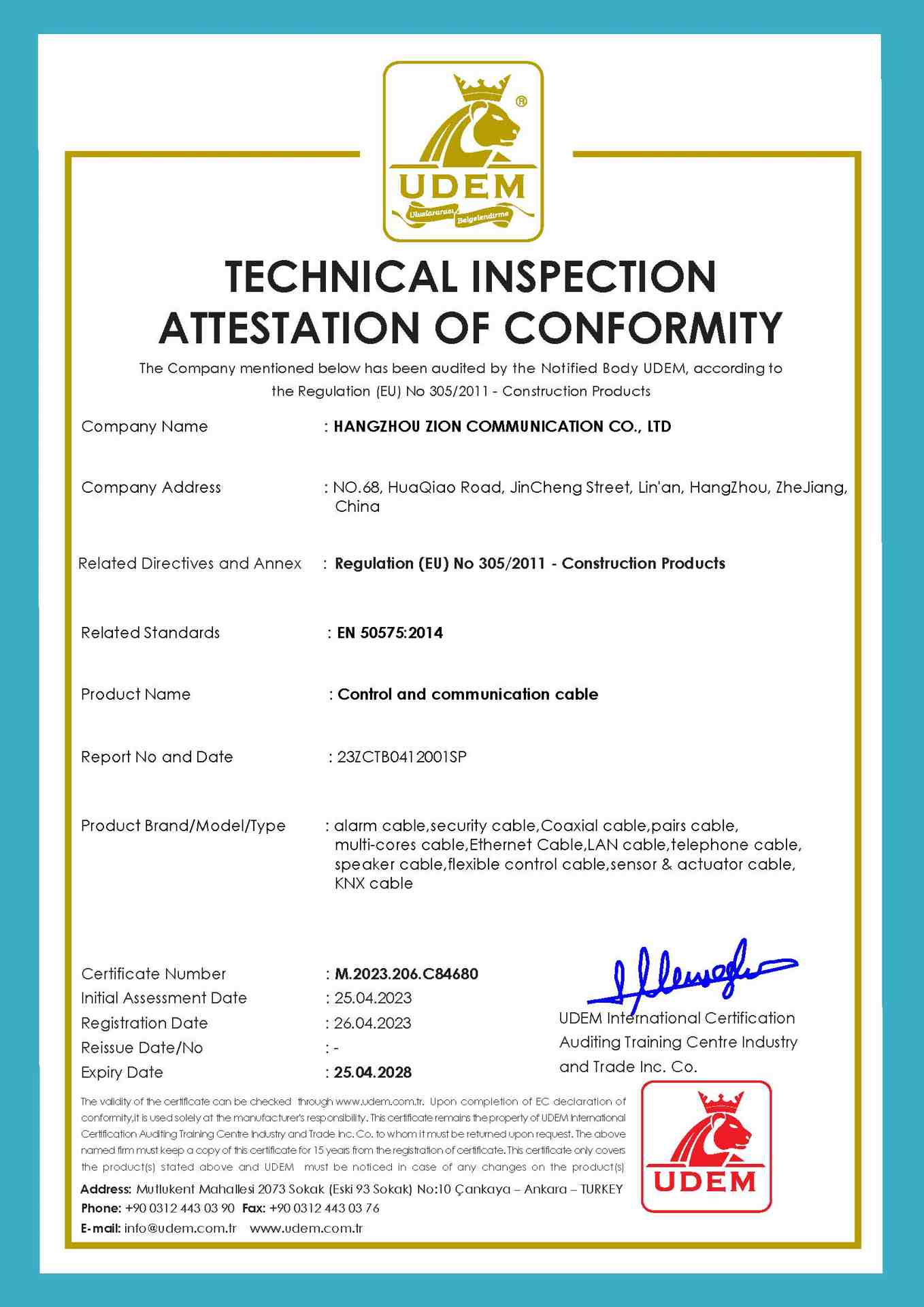

Reference Standard and Certificates for CAT5e cable
1) Fluke: DSX2-8000,DSX2-5000,DTX-1800 Link LINKED testing:
This is to place the complete integrated cabling system into the testing equipment for testing, in which the entire integrated cabling system means link. Channel CHANEL testing:
A single integrated cabling product is placed into the testing equipment. Most of the channels involved are related to the testing of cables,it means testing the cable monomer's performance indicators such as throughput, attenuation, signal-to-noise ratio, and crosstalk. The testing of links has more practical significance than the testing of channels.
2) Network Analyzers
Can directly and accurately test 100M, 305M, and other different lengths, with test requirements higher than the FLUKE test.
How to select/choose right cat5e cable？
Selecting the right Cat5e cable for your network involves evaluating several factors to match the cable's specifications with your specific networking requirements. Here's a summary of the key considerations:
Jacket Type:
Plenum:
Best for air circulation spaces, like air ducts, due to fire-resistant properties.
Riser:
Suitable for vertical spaces within buildings, offering good heat resistance.
PVC:
Ideal for outdoor use, weather-resistant but can emit toxic gases when overheated. PE (Polyethylene):
Great for outdoor use, known for its moisture and chemical resistance. LSZH (Low Smoke Zero Halogen):
Used in areas where smoke emission and toxic fumes could be a concern in the event of a fire.
Conductor Material: Bare Copper:
Flexible, with superior EMI and crosstalk resistance, maintains signal integrity well. Copper-Clad Aluminum (CCA):
A more budgetfriendly option, but less durable and effective under certain conditions.
Shielding: U/UTP (Unshielded Twisted Pair):
Common, without additional shielding, sufficient for most environments. F/UTP (Foiled Twisted Pair):
Includes foil shielding, offering better protection against interference. SF/UTP (Shielded Foiled Twisted Pair):
Both foil and braided shielding, for maximum protection in high-interference areas.
Length and Color: Length:
Choose based on need, but consider extra length for adjustments. Color:
Different colors help in cable management and identification.
Cost: Opt for bare copper if budget allows for better performance. Choose CCA for more budgetfriendly options.
How do I place an OEM or customized order?
Send your purchase intention to our email: info@zion-communication.com
Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information.
Sign the contract or Proforma Invoice.
After receiving your deposit, we will start to arrange the production. 2 weeks before the completion of production, we will notify you to start contacting shipping.
Why choose Zion Communications as your supplier and partner?
●Zion Communication is one of the top manufacturer and exporter of cables. ●Extensive experience in manufacturing for export and problem-solving.
●Zion Communication focuses on customer needs: provide competitive signal & Low voltage power transmission products and skilled workers to guarantee the best products to our customers.
●Zion Communication has advanced production equipment and excellent engineers and services, continue to create maximum value for customers! ●Our management and international sales teams are committed to our customers' utmost satisfaction.
