CYKY-J, CYKY-O
hellosignal
power and control cable
Availability: | |
---|---|
Product Description
PVC insulated and PVC sheathed | |||||||||||

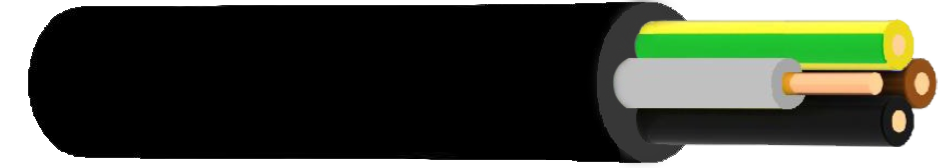

Construction:
| |||||||||||
Conductors | Annealed copper solid class 1(RE) acc. to EN 60228 | ||||||||||
Insulation | Special PVC compound type TI1 acc to EN 50363-3 | ||||||||||
Sheath | Special PVC compound type TM1 acc to EN 50363-4-1 | ||||||||||

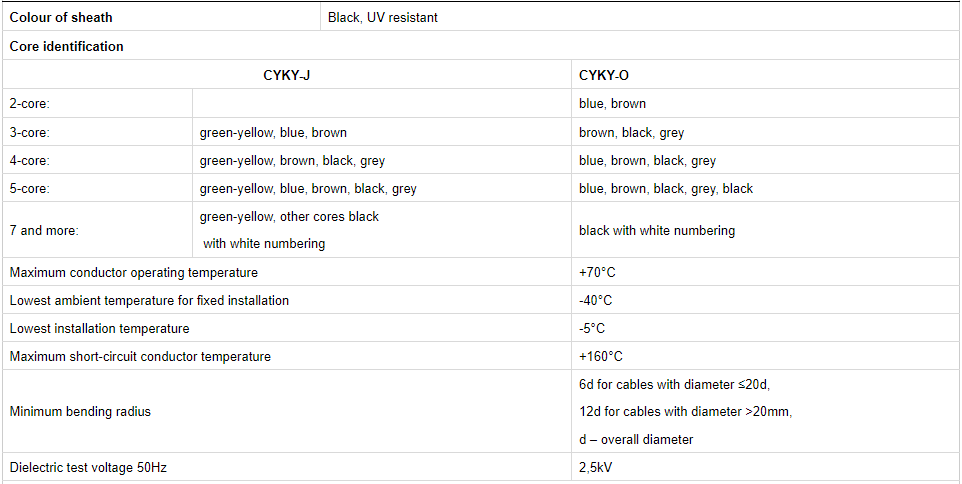

Characteristic: | |||||||||||
Colour of sheath | Black, UV resistant | ||||||||||
Core identification | |||||||||||
CYKY-J | CYKY-O | ||||||||||
2-core: | blue, brown | ||||||||||
3-core: | green-yellow, blue, brown | brown, black, grey | |||||||||
4-core: | green-yellow, brown, black, grey | blue, brown, black, grey | |||||||||
5-core: | green-yellow, blue, brown, black, grey | blue, brown, black, grey, black | |||||||||
7 and more: | green-yellow, other cores black | black with white numbering | |||||||||
Maximum conductor operating temperature | +70°C | ||||||||||
Lowest ambient temperature for fixed installation | -40°C | ||||||||||
Lowest installation temperature | -5°C | ||||||||||
Maximum short-circuit conductor temperature | +160°C | ||||||||||
Minimum bending radius | 6d for cables with diameter ≤20d, | ||||||||||
Dielectric test voltage 50Hz | 2,5kV | ||||||||||
Fire Performance: | |||||||||||
Flame retardant | EN 60332-1-2 | ||||||||||
Fire classification products and building elements related with | Eca acc. to EN 13501-6 | ||||||||||
Applications: | |||||||||||
For fixed installation in interior premises, cable ducts, in the open air, in water – as permitted by the local building | |||||||||||
Standard length cable packing | 500 or 1000m on drums. | ||||||||||
Zion's Hot Types | |||||||||||

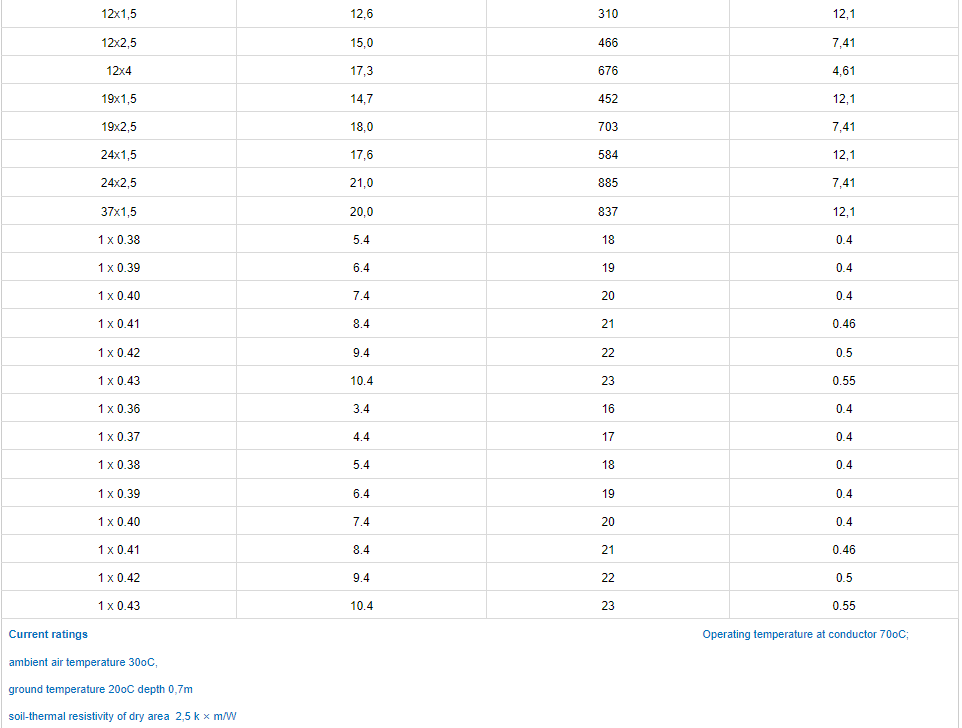

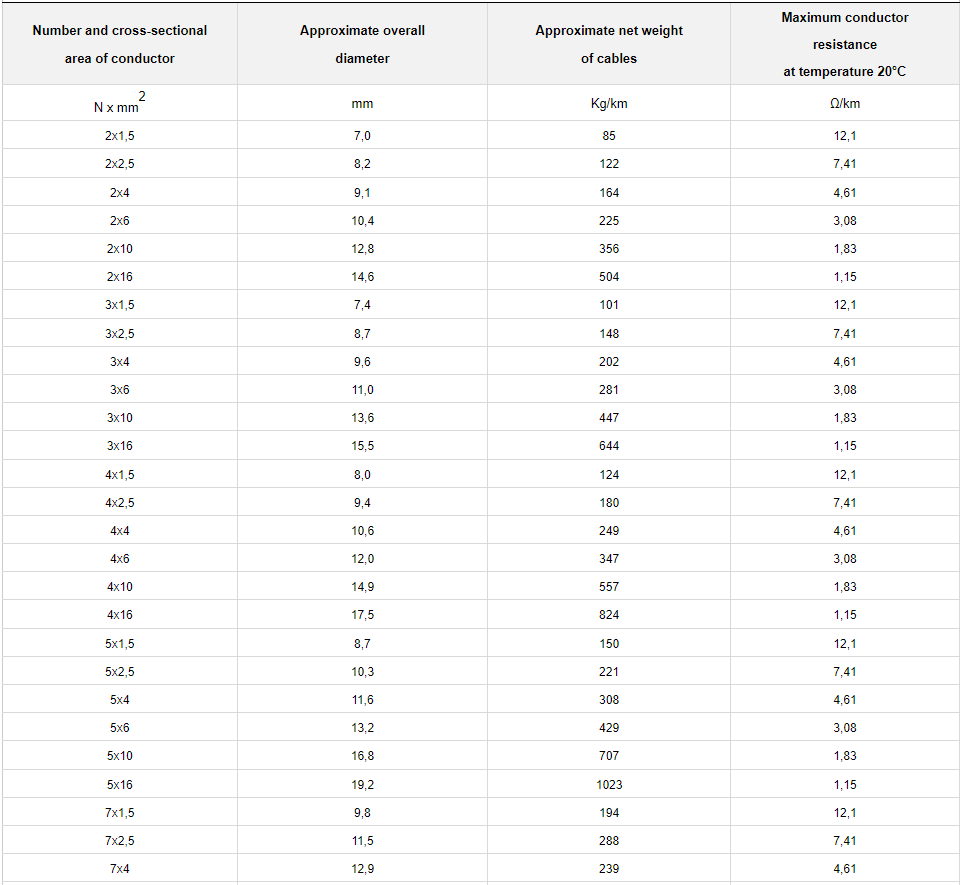

Number and cross-sectional | Approximate overall | Approximate net weight | Maximum conductor | ||||||||
N x mm2 | mm | Kg/km | Ω/km | ||||||||
2x1,5 | 7,0 | 85 | 12,1 | ||||||||
2x2,5 | 8,2 | 122 | 7,41 | ||||||||
2x4 | 9,1 | 164 | 4,61 | ||||||||
2x6 | 10,4 | 225 | 3,08 | ||||||||
2x10 | 12,8 | 356 | 1,83 | ||||||||
2x16 | 14,6 | 504 | 1,15 | ||||||||
3x1,5 | 7,4 | 101 | 12,1 | ||||||||
3x2,5 | 8,7 | 148 | 7,41 | ||||||||
3x4 | 9,6 | 202 | 4,61 | ||||||||
3x6 | 11,0 | 281 | 3,08 | ||||||||
3x10 | 13,6 | 447 | 1,83 | ||||||||
3x16 | 15,5 | 644 | 1,15 | ||||||||
4x1,5 | 8,0 | 124 | 12,1 | ||||||||
4x2,5 | 9,4 | 180 | 7,41 | ||||||||
4x4 | 10,6 | 249 | 4,61 | ||||||||
4x6 | 12,0 | 347 | 3,08 | ||||||||
4x10 | 14,9 | 557 | 1,83 | ||||||||
4x16 | 17,5 | 824 | 1,15 | ||||||||
5x1,5 | 8,7 | 150 | 12,1 | ||||||||
5x2,5 | 10,3 | 221 | 7,41 | ||||||||
5x4 | 11,6 | 308 | 4,61 | ||||||||
5x6 | 13,2 | 429 | 3,08 | ||||||||
5x10 | 16,8 | 707 | 1,83 | ||||||||
5x16 | 19,2 | 1023 | 1,15 | ||||||||
7x1,5 | 9,8 | 194 | 12,1 | ||||||||
7x2,5 | 11,5 | 288 | 7,41 | ||||||||
7x4 | 12,9 | 239 | 4,61 | ||||||||
12x1,5 | 12,6 | 310 | 12,1 | ||||||||
12x2,5 | 15,0 | 466 | 7,41 | ||||||||
12x4 | 17,3 | 676 | 4,61 | ||||||||
19x1,5 | 14,7 | 452 | 12,1 | ||||||||
19x2,5 | 18,0 | 703 | 7,41 | ||||||||
24x1,5 | 17,6 | 584 | 12,1 | ||||||||
24x2,5 | 21,0 | 885 | 7,41 | ||||||||
37x1,5 | 20,0 | 837 | 12,1 | ||||||||
1 x 0.38 | 5.4 | 18 | 0.4 | ||||||||
1 x 0.39 | 6.4 | 19 | 0.4 | ||||||||
1 x 0.40 | 7.4 | 20 | 0.4 | ||||||||
1 x 0.41 | 8.4 | 21 | 0.46 | ||||||||
1 x 0.42 | 9.4 | 22 | 0.5 | ||||||||
1 x 0.43 | 10.4 | 23 | 0.55 | ||||||||
1 x 0.36 | 3.4 | 16 | 0.4 | ||||||||
1 x 0.37 | 4.4 | 17 | 0.4 | ||||||||
1 x 0.38 | 5.4 | 18 | 0.4 | ||||||||
1 x 0.39 | 6.4 | 19 | 0.4 | ||||||||
1 x 0.40 | 7.4 | 20 | 0.4 | ||||||||
1 x 0.41 | 8.4 | 21 | 0.46 | ||||||||
1 x 0.42 | 9.4 | 22 | 0.5 | ||||||||
1 x 0.43 | 10.4 | 23 | 0.55 | ||||||||

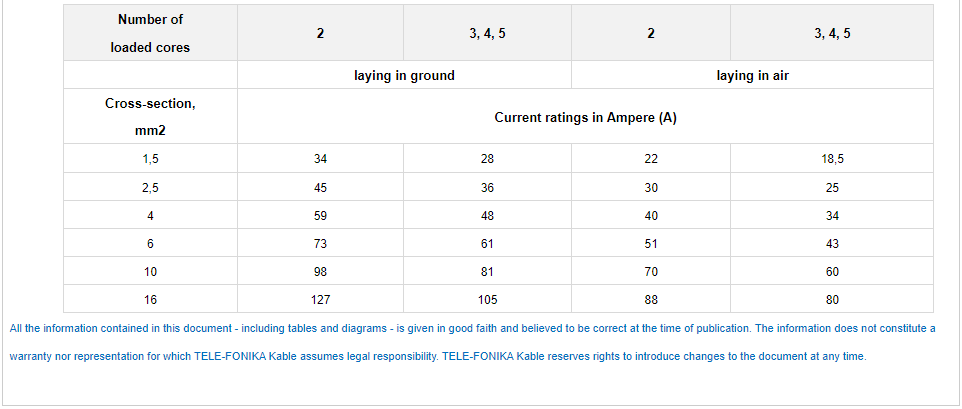

Current ratings Operating temperature at conductor 70oC; ambient air temperature 30oC, | |||||||||||
Number of | 2 | 3, 4, 5 | 2 | 3, 4, 5 | |||||||
laying in ground | laying in air | ||||||||||
Cross-section, | Current ratings in Ampere (A) | ||||||||||
1,5 | 34 | 28 | 22 | 18,5 | |||||||
2,5 | 45 | 36 | 30 | 25 | |||||||
4 | 59 | 48 | 40 | 34 | |||||||
6 | 73 | 61 | 51 | 43 | |||||||
10 | 98 | 81 | 70 | 60 | |||||||
16 | 127 | 105 | 88 | 80 | |||||||
All the information contained in this document - including tables and diagrams - is given in good faith and believed to be correct at the time of publication. The information does not constitute a warranty nor representation for which TELE-FONIKA Kable assumes legal responsibility. TELE-FONIKA Kable reserves rights to introduce changes to the document at any time. |
