Double Suspension Set for ADSS

Double Suspension Set for ADSS is mainly used for large height difference, span more than 800 meters or unilateral overhang angle is 30 º -36 º line tower connection

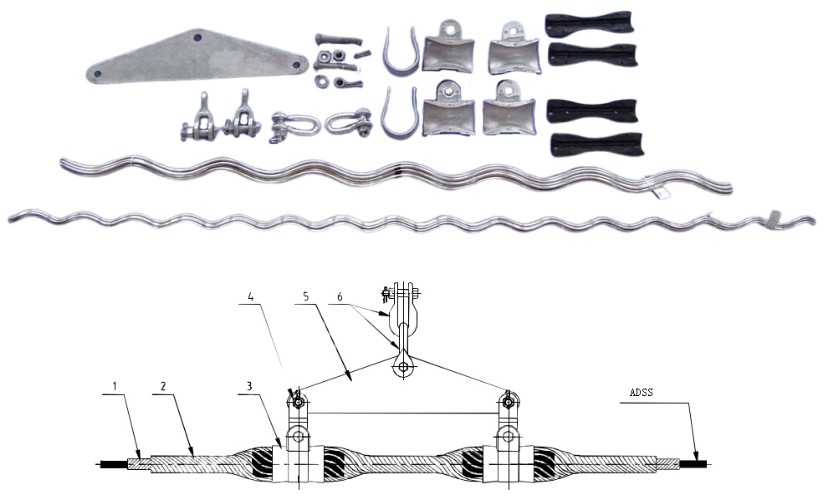

Pictures and illustrations:

1.Structural Reinforcing Rods    2.Dead-end Component    3.AGS Clamp
4.PS-link    5.Yoke Plate    6.U-Clevis

Model Specification (Span ＞800m):

Name

Available Dia. of
Cable(mm)

Length of Dead-end
Component
(mm)

Length of Reinforcing Rods(mm)

Reference
Weight (kg)

Universal Scheme

Link

AGS Clamp

Link Fittings

ZC-AXY 0940 300

8.6-9.4

1500

1060

1.2

L-1040

AGS-4

U-10

ZC-AXS 0940

8.6-9.4

1900

1600

1.7

L-1040

AGS-4

U-10

ZC-AXS 1010

9.5-10.1

1900

1600

1.8

L-1040

AGS-4

U-10

ZC-AXS 1070

10.2-10.7

1900

1600

1.9

L-1040

AGS-4

U-10

ZC-AXS 1140

10.8-11.4

1900

1600

1.9

L-1040

AGS-4

U-10

ZC-AXS 1220

11.5-12.2

2000

1700

2.2

L-1040

AGS-4

U-10

ZC-AXS 1290

12.3-12.9

2000

1800

2.3

L-1040

AGS-5

U-10

ZC-AXS 1370

13.0-13.7

2000

1800

3.4

L-1040

AGS-5

U-10

ZC-AXS 1460

13.8-14.6

2000

1800

3.6

L-1040

AGS-5

U-10

ZC-AXS 1550

14.7-15.5

2200

1900

4

L-1040

AGS-5

U-10

ZC-AXS 1650

15.6-16.5

2200

1900

4.2

L-1040

AGS-6

U-10

ZC-AXS 1750

16.6-17.5

2400

2000

4.4

L-1040

AGS-6

U-10

ZC-AXS 1870

17.6-18.7

2400

2000

4.7

L-1040

AGS-6

U-10

Note: 1. The maximum unilateral suspension angle of single suspension clamp is 20 ° - 30 °.

2.The above configuration is conventional configuration. If special configuration is required, consult the technical department of the company.
