Product Description

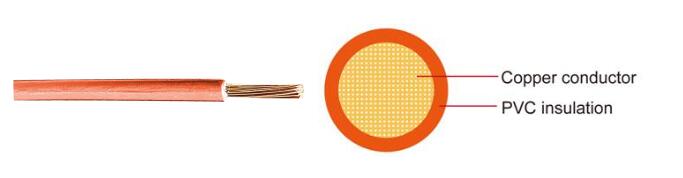

FLRY-A Automotive Cable | |||||||
Product Description: | |||||||
Conductor | Cu-ETP1 bare or tinned copper according to DIN EN13602 | ||||||
Insulation | PVC | ||||||
Standard Compliance | ISO 6722 Class B | ||||||
Technical Parameters | Operating temperature:–40 °C to 105 °C | ||||||
Application: | |||||||
Automotive PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, motorcycles electrical equipment in high temperature condition. | |||||||

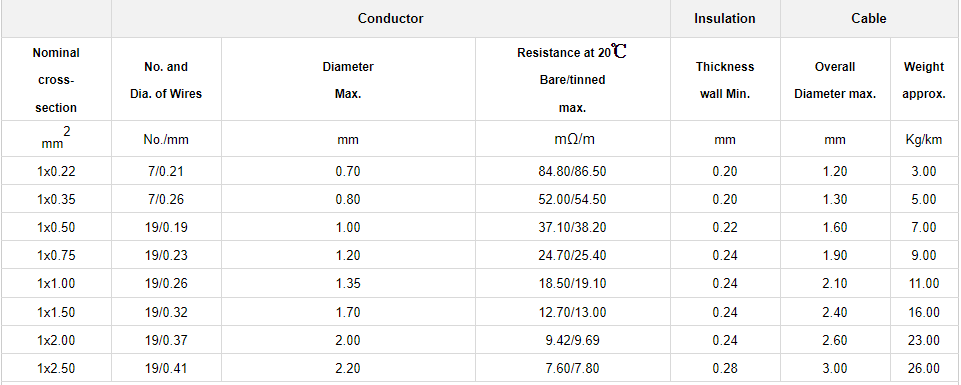

Zion's Hot Types of FLRY-A Automotive cable | |||||||
Conductor | Insulation | Cable | |||||
Nominal | No. and | Diameter | Resistance at 20℃ | Thickness | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | Kg/km | |
1x0.22 | 7/0.21 | 0.70 | 84.80/86.50 | 0.20 | 1.20 | 3.00 | |
1x0.35 | 7/0.26 | 0.80 | 52.00/54.50 | 0.20 | 1.30 | 5.00 | |
1x0.50 | 19/0.19 | 1.00 | 37.10/38.20 | 0.22 | 1.60 | 7.00 | |
1x0.75 | 19/0.23 | 1.20 | 24.70/25.40 | 0.24 | 1.90 | 9.00 | |
1x1.00 | 19/0.26 | 1.35 | 18.50/19.10 | 0.24 | 2.10 | 11.00 | |
1x1.50 | 19/0.32 | 1.70 | 12.70/13.00 | 0.24 | 2.40 | 16.00 | |
1x2.00 | 19/0.37 | 2.00 | 9.42/9.69 | 0.24 | 2.60 | 23.00 | |
1x2.50 | 19/0.41 | 2.20 | 7.60/7.80 | 0.28 | 3.00 | 26.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. |
