HDMI 2.0 4K Braiding Cable

Description

Version 2.0 the most common current iteration of the HDMI spec, suit for simultaneously transmitting digital video and audio from a source, such as a computer or TV cable box, to a computer monitor, TV or projector.

ZION Comm. offer HDMI 2.0 Braiding Cable at lengths of 0.5 meter to 3 meters with resolutions up to 4K @60Hz.

ZION Comm. offer HDMI 2.0 Braiding Cable at lengths of 5 meters to 10 meters with resolutions up to 4K @30Hz.

Features:

Maximum bandwidth up to 18Gbps

Resolutions up to 4K@60Hz and 4K@30Hz

4:4:4 chroma subsampling

High Dynamic Range (HDR)

Extended Mode: Supports 2 screens showing different picture

Sync Mode: Supports 2 screens showing the same picture

Game Mode: Supports PS3/4 immersive experience

Support for advanced audio features such as DTS-HD, Dolby TrueHD & Dolby ATMOS

Broad Compatibility

Specification:

General

Length

0.5m - 3m

5m - 10m

12m - 15m

Resolution

3840×2160

3840×2160

1920×1080

Refresh Rate

60Hz

30Hz

60Hz

HDMI Version

2.0

1.4

1.2

Bandwidth

18 Gbps

10.2 Gbps

Tone Quality

32 Audio Channels

8 Audio Channels

Display screen

21:9 cinemascope

16:9 aspect ratio

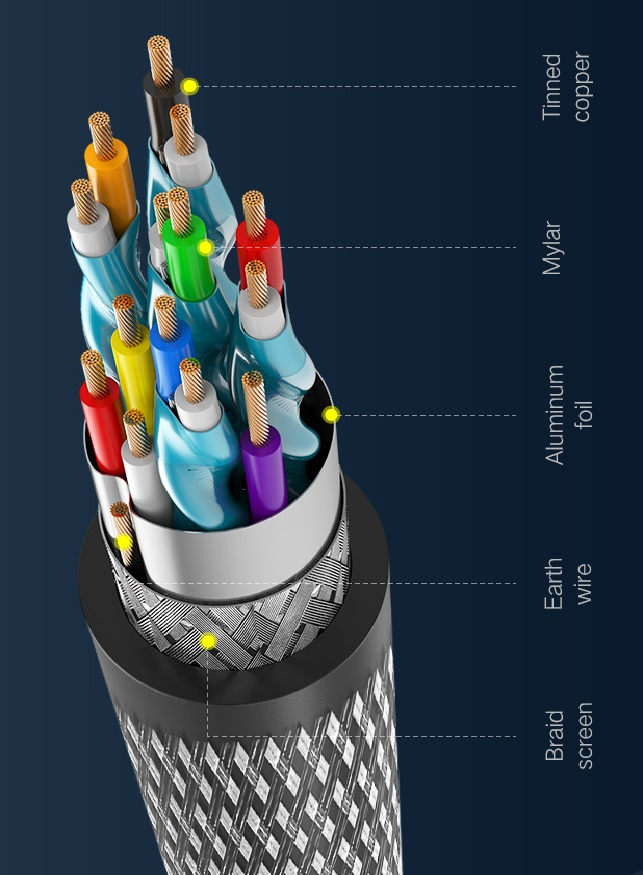

Cable details

Conductor Matterial

Copper or Tinned Copper

Conductor Gauge

0.5M - 5M: 30AWG

8M: 28AWG

10-15M: 26AWG

No. of conductors

19+1

Shielding

Aluminum Foil

TC Braid

Drain Wire

Tinned Copper

OD of Jacket

0.5M - 5M: 8.0mm

8M - 15M: 8.8mm

Jacket Matterial

PVC (Polyvinyl chloride)

Jacket Color

Black

Braiding

Cotton yarn sleeve

Connector details

Connector Plating

24K Gold

Connector Type

HDMI (19pin)

Male to Male

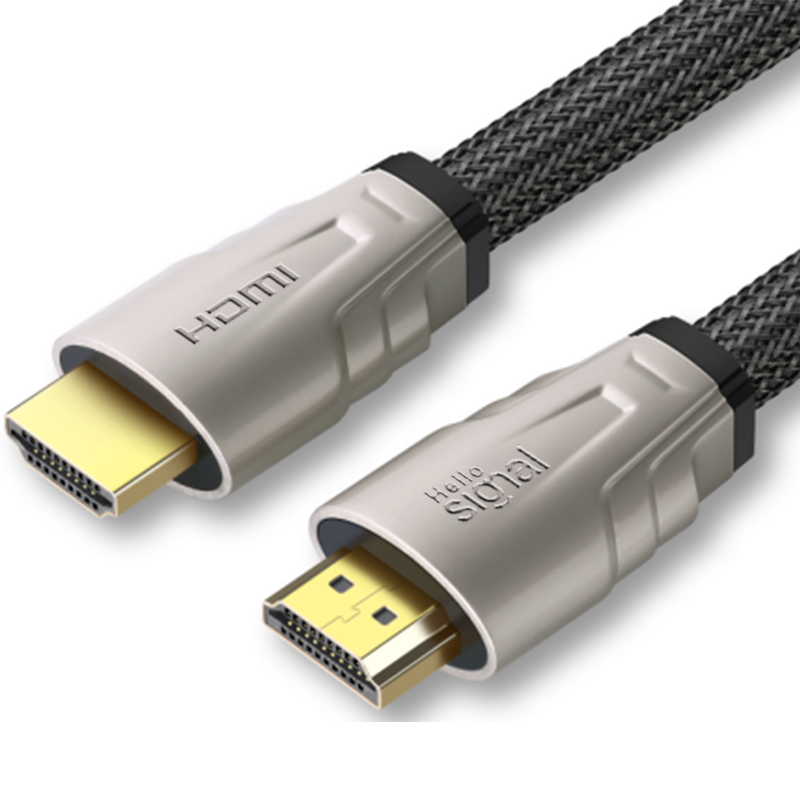

ZC110

Model List

Zion Code

Description

H20BC010-ZC110

HDMI 2.0 Braiding CABLE 1M ZC110 Connector 4K/60Hz  18 Gbps

H20BC015-ZC110

HDMI 2.0 Braiding CABLE 1.5M ZC110 Connector 4K/60Hz  18 Gbps

H20BC020-ZC110

HDMI 2.0 Braiding CABLE 2M ZC110 Connector 4K/60Hz  18 Gbps

H20BC030-ZC110

HDMI 2.0 Braiding CABLE 3M ZC110 Connector 4K/60Hz  18 Gbps

H20BC050-ZC110

HDMI 2.0 Braiding CABLE 5M ZC110 Connector 4K/30Hz  10.2 Gbps

H20BC080-ZC110

HDMI 2.0 Braiding CABLE 8M ZC110 Connector 4K/30Hz  10.2 Gbps

H20BC100-ZC110

HDMI 2.0 Braiding CABLE 10M ZC110 Connector 4K/30Hz  10.2 Gbps

H20BC120-ZC110

HDMI 2.0 Braiding CABLE 12M ZC110 Connector 1080P/60Hz  10.2 Gbps

H20BC150-ZC110

HDMI 2.0 Braiding CABLE 15M ZC110 Connector 1080P/60Hz  10.2 Gbps

OEM/ODM service for you

ZION Communication has rich expiriences in producing OEM/ODM cases
becaused of Profession R & D team.

• Customized Logo on Plug & Boot

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available

• Different Molding/Strain Relief

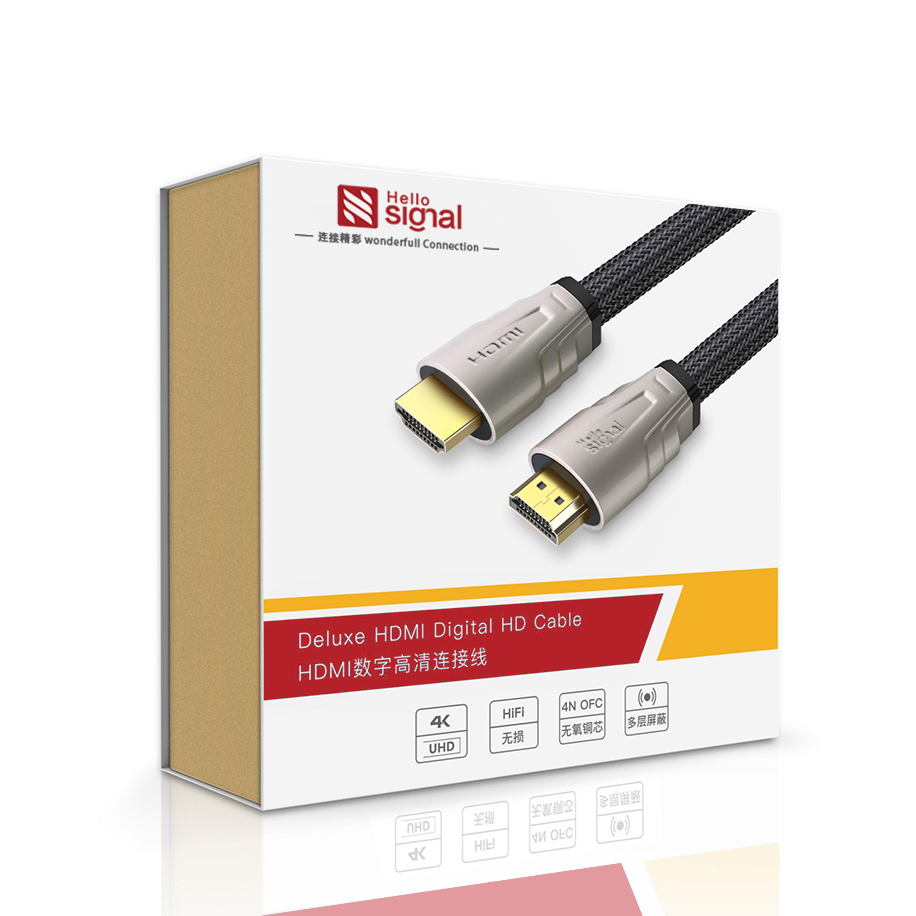

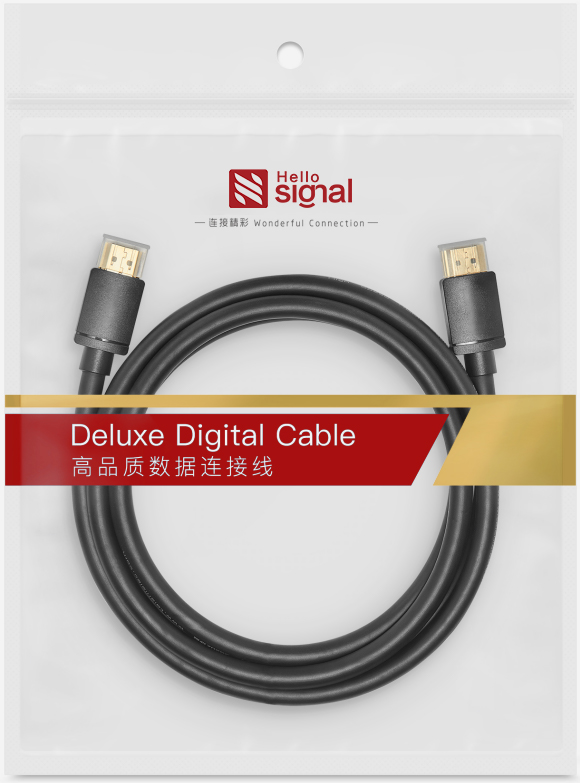

Packing
