Product Description

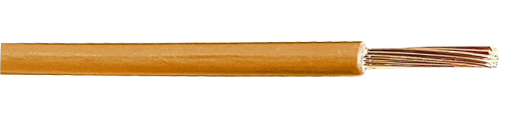

HDT Automotive Cable | ||||||
Product Description: | ||||||

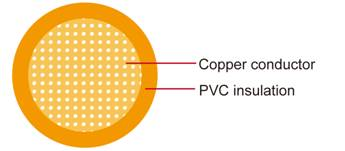

Conductor | Soft-annealed copper according to ASTM B3 | |||||
Insulation | PVC | |||||
Standard Compliance | SAE J1128 | |||||
Technical Parameters | Operating temperature:–40 °C to +85 °C | |||||
Application: | ||||||
Automotive PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles. | ||||||

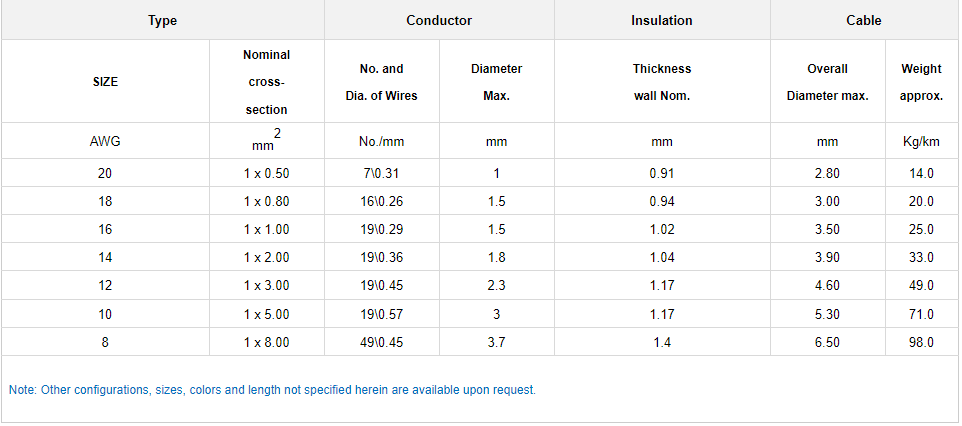

Zion's Hot Types of HDT Automotive cable | ||||||
Type | Conductor | Insulation | Cable | |||
SIZE | Nominal | No. and | Diameter | Thickness | Overall | Weight |
AWG | mm2 | No./mm | mm | mm | mm | Kg/km |
20 | 1 x 0.50 | 7\0.31 | 1 | 0.91 | 2.80 | 14.0 |
18 | 1 x 0.80 | 16\0.26 | 1.5 | 0.94 | 3.00 | 20.0 |
16 | 1 x 1.00 | 19\0.29 | 1.5 | 1.02 | 3.50 | 25.0 |
14 | 1 x 2.00 | 19\0.36 | 1.8 | 1.04 | 3.90 | 33.0 |
12 | 1 x 3.00 | 19\0.45 | 2.3 | 1.17 | 4.60 | 49.0 |
10 | 1 x 5.00 | 19\0.57 | 3 | 1.17 | 5.30 | 71.0 |
8 | 1 x 8.00 | 49\0.45 | 3.7 | 1.4 | 6.50 | 98.0 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. |
