Helical Vibration Damper

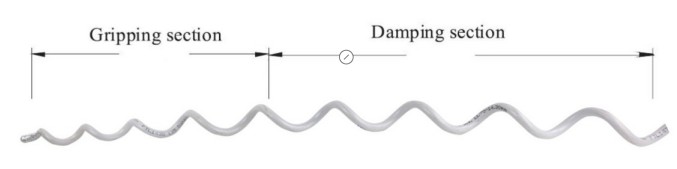

Pictures and illustrations:

This product uses high-strength, anti-aging PVC plastic,
It commonly used in the damping device for ADSS, and the heavy ice of the anti-vibration OPGW.

Base on the tension and span of ADSS, Choose the common configurations in the right table:

Span

Number/Span

<100M

0

100-250

2

250-400

4

400-800

6

800-1000

8

Model Specification:

Model

Dia. Range(mm)

Clamp Length(mm)

Total Length(mm)

Weight(kg)

ZC-FTL 1170 130

8.30-11.70

250

1300

0.28

ZC-FTL 1430 135

11.71-14.30

250

1350

0.3

ZC-FTL 1930 167

14.31-19.30

330

1670

0.66

ZC-FTL 2220 180

19.31-22.20

330

1800

0.76
