7*0.752mmSPC+7.24mmSPE+144×0.16mmSPC+168×0.16mmSPC+10.8mmPVC
hellosignal
7101215
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Availability: | |
---|---|
Specification
RG 214(NO.7101215) | ||
Construction Parameters: | ||
Inner Conductor | 7/0.752±0.01mm Silver Plated Copper | |
Dielectric | 7.24 ±0.05mm SPE | |
Shield 1 | 24×6×0.16mm Silver Plated Copper | |
Density of braiding: 95.7% ± 3% | ||
Shield 2 | 24×7×0.16mm Silver Plated Copper | |
Density of braiding: 98% ± 3% | ||
Jacket | 10.8±0.10mm PVC Black | |
Standard | MIL-C-17 | |
Electrical Characteristics: | ||
Capacitance | 101±5 pF/m | |
Impedance | 50 ±2 Ω | |
Velocity of Propagation | 66% | |
Max Operating Voltage | 5000 VMS | |
Max Operating Frequency | 11000 MHz | |
Mechanical and Envrionmental Properties: | ||
Cable bend radius | 40 mm | |
Operating Temp Range | -40 ℃ to 80℃ | |
Installation Temp Range | -5 ℃ to 20℃ | |

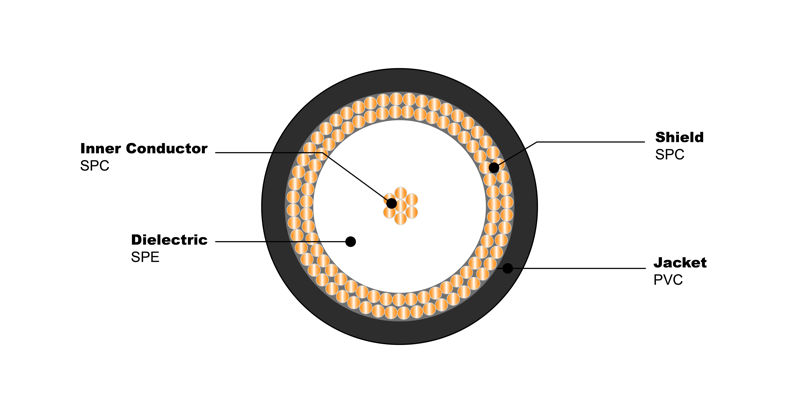

Cross Section: | ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | |
100 | 6.60 | |
400 | 14.10 | |
1000 | 24.00 | |
3000 | 46.60 | |
5000 | 64.60 | |
11000 | 110.90 | |
Order Informations: | ||
Marking | HELLOSIGNAL RG214 | |
Package | 100M,300M,500M | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNALTM OR OEM |
