PROFIBUS-DP Cable

▉ Application

PROFIBUS-DP cable designed for industrial field bus systems automation
and communication,Fixed installs in many places, specially designed flexible cable
used in many applications,such as,manufacture,process control and buliding automation
(power chains,moving machine parts)etc.

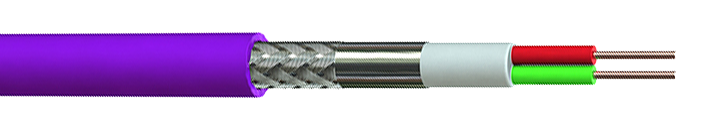

▉ Cable Construction

Conductor: Solid or Stranded copper wire

Insulation: Foam PE

Filler:(Optional)

Shield: AL/Mylar screen and TC braid

Jacket: see attached list

Color: Purple(similar to RAL 4001)

▉ Cable Construction

AL/Mylar and tinned copper braid,excellent Anti-EMI performance

Oil resistance,Abrasion resistance,Anti-hydrolysis

Fire resistance meets IEC60332-1

Easy bending

UV resistance

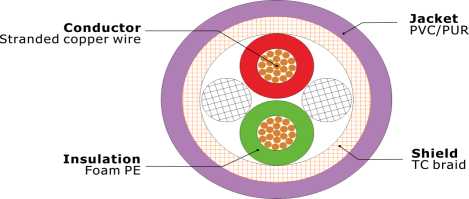

▉ Cross Section

▉ Technical data

Temperature range

 .-40℃ to 80℃

Peak voltage

300V

Characteristic impedance

150±15 Ohm

Min bending radius

Fixed installation：8x cable diameter

Moved installation：15x cable diameter

Loop conductor DC resistance at 20℃

≤76 ohm/km

▉ Product List

Item No.

Spec.

Inner Jacket

Outer Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

Application

7131400

1*2*22AWG/1

PVC

PVC

8

25

72

Fixed installation

7131401

1*2*22AWG/1

/

PUR

8

25

68

7131402

1*2*22AWG/1

/

PVC

8

25

72.5

7131403

1*2*22AWG/1

PVC

PE

8

25

61.5

7131404

1*2*22AWG/1

PVC

PUR

8

25

68.5

7131405

1*2*24AWG/19

PVC

PVC

8

25

72

Flexible installation

7131406

1*2*24AWG/19

/

PUR

8

25

68

7131407

1*2*24AWG/19

/

PVC

8

25

72.5

7131408

1*2*24AWG/19

PVC

PUR

8

25

68.5

▉ Order Informations

Marking

HELLOSIGNAL Industrial PROFIBUS-DP Cable XXXFT/M

Package

100m/Reel, 300m/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
