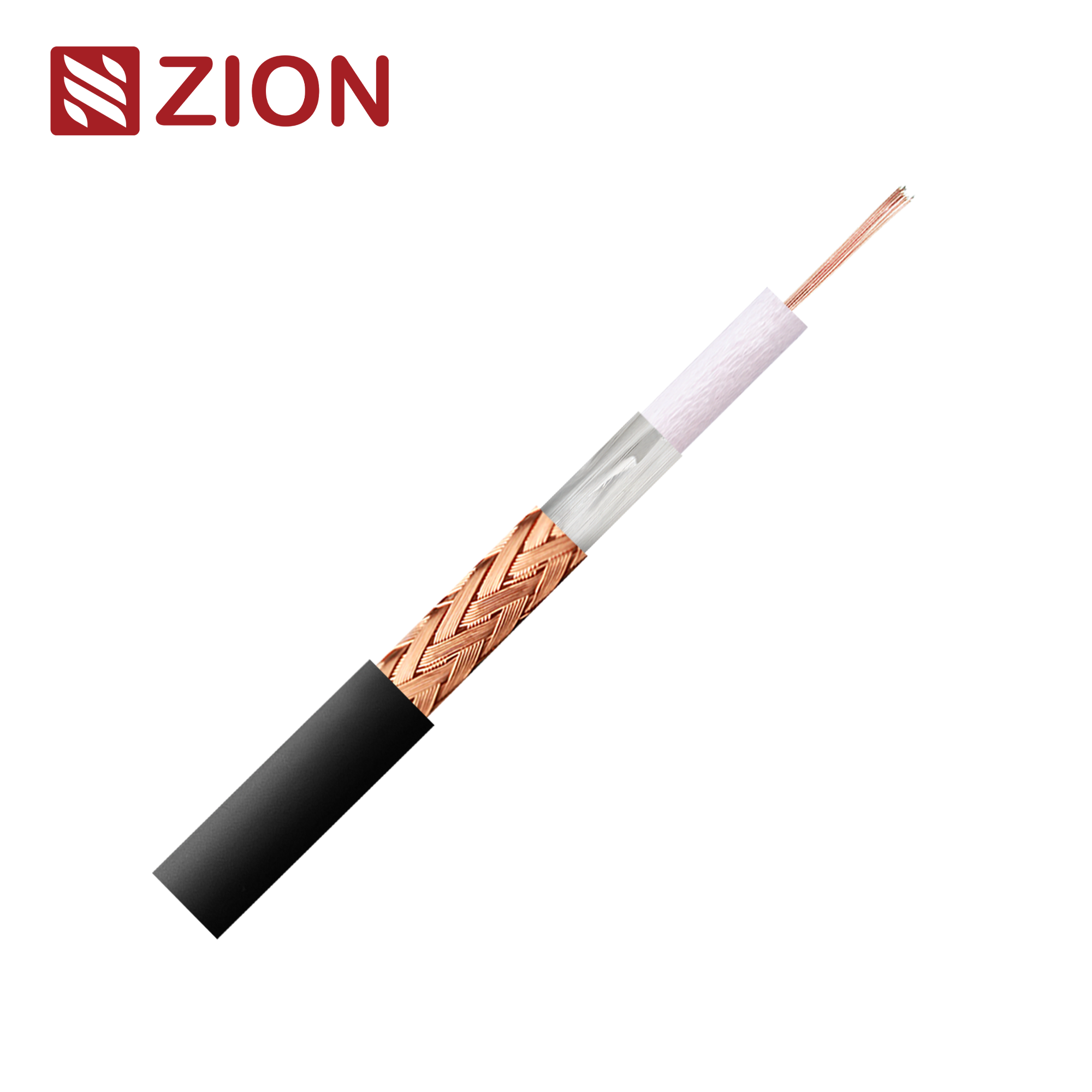

SAT 50M Coax Cable 75 Ohm CATV coaxial Cable

Construction Parameters:

Inner Conductor

1.00mm Copper

Dielectric

4.75mm Foamed PE

Shield 1

Aluminum PET

Shield 2

CuSn braid wire 38% coverage

Jacket

6.60±0.10mm PVC

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  21.9 Ω/km

Capacitance

54 ±3 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.6±0.15mm PVC

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

2.00

10

2.80

30

3.80

50

4.60

200

8.60

300

10.50

470

13.60

862

18.80

1000

20.40

1750

27.80

2150

31.10

2400

33.30

3000

37.70

Order Informations:

Marking

HELLOSIGNAL SAT 50M Coax Cable

CATV COAXIAL CABLE 7100501 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
