Product Description
Silicone 180℃ Cable | |||||||||||||||||||||||||
Application: | Cable Standards: | ||||||||||||||||||||||||
This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils, acids, lyes and oxidants. | VDE 0482-332-1-2 | ||||||||||||||||||||||||
Fire Retardant according to: IEC 60332-1-2 | |||||||||||||||||||||||||
Product Description: | |||||||||||||||||||||||||
Conductor | Class 5 flexible Stranded Tinned Copper | ||||||||||||||||||||||||
Insulation | Silicone Rubber | ||||||||||||||||||||||||
Outer Sheath | Silicone Rubber | ||||||||||||||||||||||||
Characteristics: | |||||||||||||||||||||||||
Voltage Rating Uo/U | 300/500V | ||||||||||||||||||||||||
Temperature Rating | Fixed: -60ºC to +180ºC | ||||||||||||||||||||||||
Minimum Bending Radius | 5 x overall diameter | ||||||||||||||||||||||||
5 x overall diameter | |||||||||||||||||||||||||

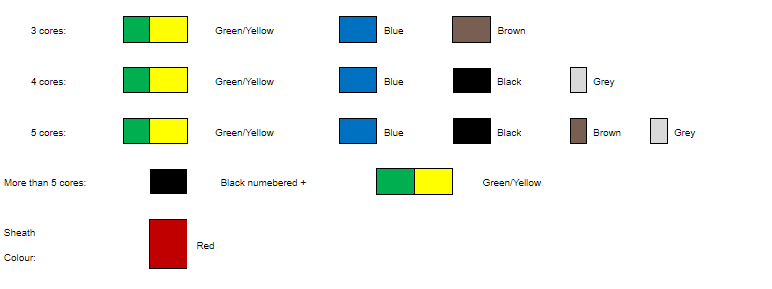

Core Identification: | |||||||||||||||||||||||||
3 cores: | Green/Yellow | Blue | Brown | ||||||||||||||||||||||
4 cores: | Green/Yellow | Blue | Black | Grey | |||||||||||||||||||||
5 cores: | Green/Yellow | Blue | Black | Brown | Grey | ||||||||||||||||||||
More than 5 cores: | Black numebered + | Green/Yellow | |||||||||||||||||||||||
Sheath Colour: | Red | ||||||||||||||||||||||||

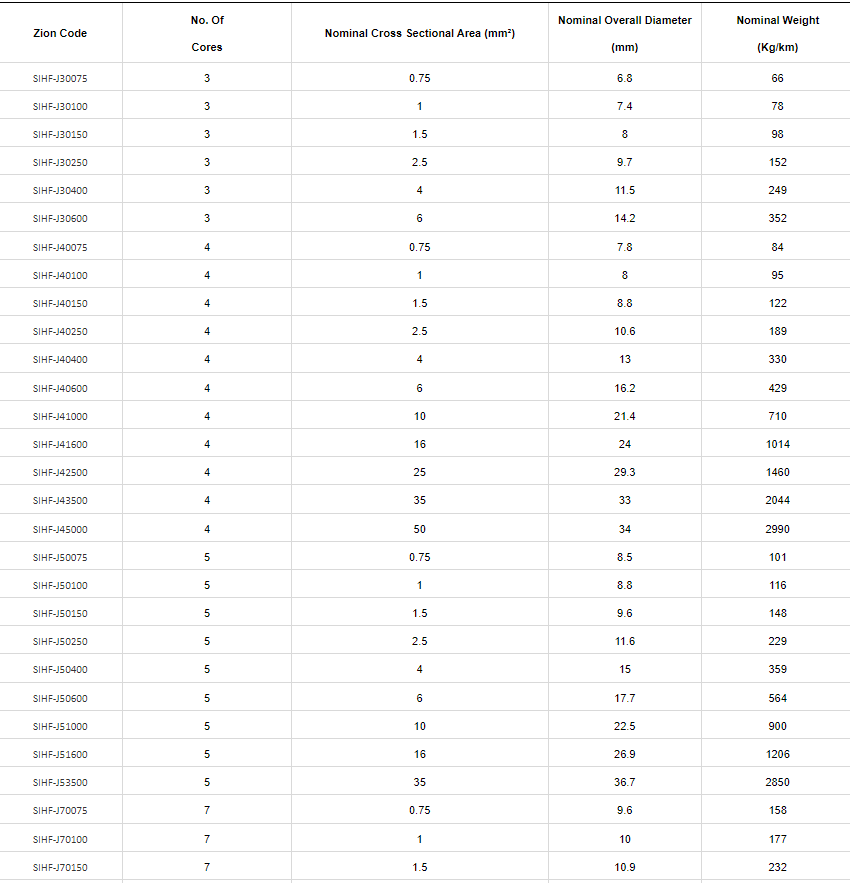

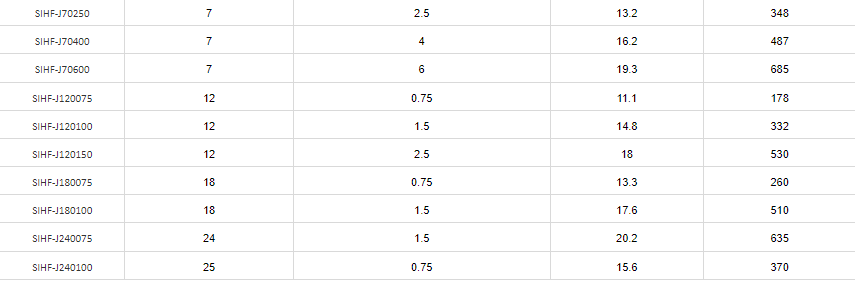

Dimensions: | |||||||||||||||||||||||||
Zion Code | No. Of | Nominal Cross Sectional Area (mm²) | Nominal Overall Diameter | Nominal Weight | |||||||||||||||||||||
SIHF-J30075 | 3 | 0.75 | 6.8 | 66 | |||||||||||||||||||||
SIHF-J30100 | 3 | 1 | 7.4 | 78 | |||||||||||||||||||||
SIHF-J30150 | 3 | 1.5 | 8 | 98 | |||||||||||||||||||||
SIHF-J30250 | 3 | 2.5 | 9.7 | 152 | |||||||||||||||||||||
SIHF-J30400 | 3 | 4 | 11.5 | 249 | |||||||||||||||||||||
SIHF-J30600 | 3 | 6 | 14.2 | 352 | |||||||||||||||||||||
SIHF-J40075 | 4 | 0.75 | 7.8 | 84 | |||||||||||||||||||||
SIHF-J40100 | 4 | 1 | 8 | 95 | |||||||||||||||||||||
SIHF-J40150 | 4 | 1.5 | 8.8 | 122 | |||||||||||||||||||||
SIHF-J40250 | 4 | 2.5 | 10.6 | 189 | |||||||||||||||||||||
SIHF-J40400 | 4 | 4 | 13 | 330 | |||||||||||||||||||||
SIHF-J40600 | 4 | 6 | 16.2 | 429 | |||||||||||||||||||||
SIHF-J41000 | 4 | 10 | 21.4 | 710 | |||||||||||||||||||||
SIHF-J41600 | 4 | 16 | 24 | 1014 | |||||||||||||||||||||
SIHF-J42500 | 4 | 25 | 29.3 | 1460 | |||||||||||||||||||||
SIHF-J43500 | 4 | 35 | 33 | 2044 | |||||||||||||||||||||
SIHF-J45000 | 4 | 50 | 34 | 2990 | |||||||||||||||||||||
SIHF-J50075 | 5 | 0.75 | 8.5 | 101 | |||||||||||||||||||||
SIHF-J50100 | 5 | 1 | 8.8 | 116 | |||||||||||||||||||||
SIHF-J50150 | 5 | 1.5 | 9.6 | 148 | |||||||||||||||||||||
SIHF-J50250 | 5 | 2.5 | 11.6 | 229 | |||||||||||||||||||||
SIHF-J50400 | 5 | 4 | 15 | 359 | |||||||||||||||||||||
SIHF-J50600 | 5 | 6 | 17.7 | 564 | |||||||||||||||||||||
SIHF-J51000 | 5 | 10 | 22.5 | 900 | |||||||||||||||||||||
SIHF-J51600 | 5 | 16 | 26.9 | 1206 | |||||||||||||||||||||
SIHF-J53500 | 5 | 35 | 36.7 | 2850 | |||||||||||||||||||||
SIHF-J70075 | 7 | 0.75 | 9.6 | 158 | |||||||||||||||||||||
SIHF-J70100 | 7 | 1 | 10 | 177 | |||||||||||||||||||||
SIHF-J70150 | 7 | 1.5 | 10.9 | 232 | |||||||||||||||||||||
SIHF-J70250 | 7 | 2.5 | 13.2 | 348 | |||||||||||||||||||||
SIHF-J70400 | 7 | 4 | 16.2 | 487 | |||||||||||||||||||||
SIHF-J70600 | 7 | 6 | 19.3 | 685 | |||||||||||||||||||||
SIHF-J120075 | 12 | 0.75 | 11.1 | 178 | |||||||||||||||||||||
SIHF-J120100 | 12 | 1.5 | 14.8 | 332 | |||||||||||||||||||||
SIHF-J120150 | 12 | 2.5 | 18 | 530 | |||||||||||||||||||||
SIHF-J180075 | 18 | 0.75 | 13.3 | 260 | |||||||||||||||||||||
SIHF-J180100 | 18 | 1.5 | 17.6 | 510 | |||||||||||||||||||||
SIHF-J240075 | 24 | 1.5 | 20.2 | 635 | |||||||||||||||||||||
SIHF-J240100 | 25 | 0.75 | 15.6 | 370 | |||||||||||||||||||||
