Product Description

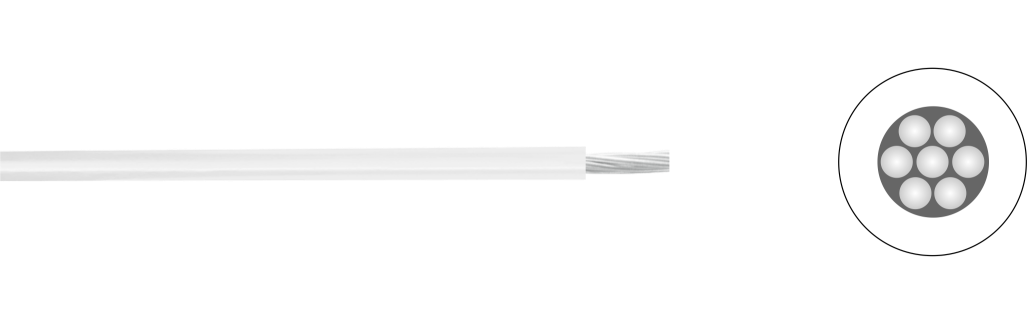

Silicone 200℃ Cable | |||||||||||||||||||||||||
Application: | Cable Standards: | ||||||||||||||||||||||||
The products are widely used in electrical wiring harnesses, sensing lines, PTC thermistors, coating | |||||||||||||||||||||||||
Product Description: | |||||||||||||||||||||||||
J | High-strength silicone rubber,Tear-resistant | ||||||||||||||||||||||||
ZR | High flame retardant silicone rubber,meet FT1 | ||||||||||||||||||||||||
TR | Ultra-fine tinned copper stranded wire (IEC 60228, category 6 standard / class 6) | ||||||||||||||||||||||||
Characteristics: | |||||||||||||||||||||||||
RoHS Compliant | |||||||||||||||||||||||||
UL 758 Appliance Wiring Material | |||||||||||||||||||||||||
Flame retardant grade: UL1581 (FT2) | |||||||||||||||||||||||||
The braid layer can prevent The influence of external force (friction, mechanical strong impact) | |||||||||||||||||||||||||
Protect the insulating layer and the protective layer from being directly or slightly damaged by | |||||||||||||||||||||||||
Core Identification: | |||||||||||||||||||||||||
Red | Yellow | Blue | White | Black | Brown | Green/Yellow | |||||||||||||||||||
Dimensions: | |||||||||||||||||||||||||
Zion Code | AWG | Conductor Structure | Insulation | Braided | Average O.D | Ω | |||||||||||||||||||
UL3068-16AWG | 16 | 7x0.50 | 0.39 | 0.15 | 2.58 | 14.6 | |||||||||||||||||||
UL3068-17AWG | 17 | 32x0.20 | 0.39 | 0.15 | 2.42 | 18.3 | |||||||||||||||||||
UL3068-18AWG | 18 | 7x0.40 | 0.39 | 0.15 | 2.28 | 23.2 | |||||||||||||||||||
UL3068-20AWG | 20 | 7x0.32 | 0.39 | 0.15 | 2.04 | 36.7 | |||||||||||||||||||
UL3068-22AWG | 22 | 7x0.26 | 0.39 | 0.15 | 1.86 | 59.4 | |||||||||||||||||||
UL3068-24AWG | 24 | 7x0.20 | 0.39 | 0.15 | 1.68 | 94.2 | |||||||||||||||||||
UL3068-26AWG | 26 | 7x0.16 | 0.39 | 0.15 | 1.56 | 150 | |||||||||||||||||||
UL3068-28AWG | 28 | 7x0.12 | 0.39 | 0.15 | 1.14 | 239 | |||||||||||||||||||
UL3068-30AWG | 30 | 7x0.10 | 0.39 | 0.15 | 1.08 | 381 | |||||||||||||||||||
