AV Automotive Cable

AV Automotive Cable

Product Description:

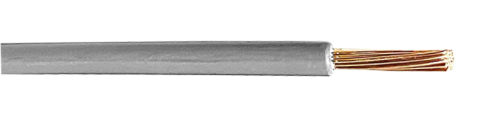

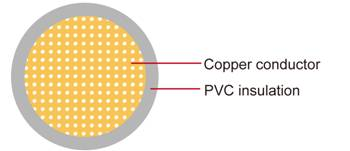

Conductor

Cu-ETP1 bare according to D 609-90

Insulation

PVC

Standard Compliance

JIS C 3406

Technical Parameters

Operating temperature: –40 °C to +85 °C                                                                    Intermittent temperature:120°C (48h)

Application:

Automotive PVC insulated single-Core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

Zion's Hot Types of  AV Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.50

7/0.32

1.00

32.70

0.60

2.20

2.40

10.00

1x0.85

11/0.32

1.20

20.80

0.60

2.40

2.60

13.00

1x1.25

16/0.32

1.50

14.30

0.60

2.70

2.90

17.00

1x2.00

26/0.32

1.90

8.81

0.60

3.10

3.40

26.00

1x3.00

41/0.32

2.40

5.59

0.70

3.80

4.10

40.00

1x5.00

65/0.32

3.00

3.52

0.80

4.60

4.90

62.00

1x8.00

50/0.45

3.70

2.32

0.90

5.50

5.80

92.00

1x10.00

63/0.45

4.50

1.84

1.00

6.50

6.90

120.00

1x15.00

84/0.45

4.80

1.38

1.10

7.00

7.40

160.00

1x20.00

41/0.80

6.10

0.89

1.10

8.20

8.80

226.00

1x30.00

70/0.80

8.00

0.52

1.40

10.80

11.50

384.00

1x40

85/0.80

8.60

0.43

1.40

11.40

12.10

462.00

1x50

108/0.80

9.80

0.34

1.60

13.00

13.80

583.00

1x60

127/0.80

10.40

0.29

1.60

13.60

14.40

678.00

1x85

169/0.80

12.00

0.22

2.00

16.00

17.00

924.00

1x100

217/0.80

13.60

0.17

2.00

17.60

18.60

1151.00

1x0.5f

20/0.18

1.00

36.70

0.60

2.20

2.40

9.00

1x0.75f

30/0.18

1.20

24.40

0.60

2.40

2.60

12.00

1x1.25f

50/0.18

1.50

14.70

0.60

2.70

2.90

18.00

1x2f

37/0.26

1.80

9.50

0.60

3.00

3.40

25.00

1x3f

61/0.26

2.40

5.76

0.70

3.80

4.10

40.00

The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter. Note: Other configurations, sizes, colors and length not specified herein are available upon request.
