Product Description

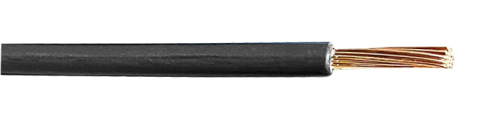

CIVUS Automotive Cable | ||||||||
Product Description: | ||||||||

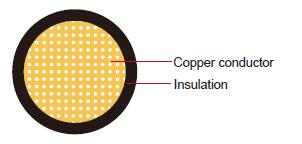

Conductor | Annealed stranded copper or copper alloy | |||||||
Insulation | Polyvinyl Chloride(PVC) | |||||||
Standard Compliance | JASO D611 | |||||||
Technical Parameters | Operating temperature:–40°C to +85 °C | |||||||
Application: | ||||||||
This PVC insulated single-core cable is used in low voltage circuits in automobiles. | ||||||||

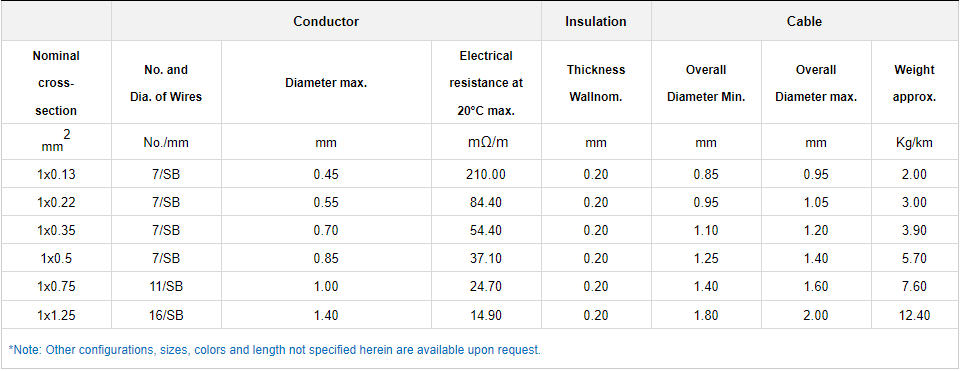

Zion's Hot Types of CIVUS Automotive cable | ||||||||
Conductor | Insulation | Cable | ||||||
Nominal | No. and | Diameter max. | Electrical | Thickness Wallnom. | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.13 | 7/SB | 0.45 | 210.00 | 0.20 | 0.85 | 0.95 | 2.00 | |
1x0.22 | 7/SB | 0.55 | 84.40 | 0.20 | 0.95 | 1.05 | 3.00 | |
1x0.35 | 7/SB | 0.70 | 54.40 | 0.20 | 1.10 | 1.20 | 3.90 | |
1x0.5 | 7/SB | 0.85 | 37.10 | 0.20 | 1.25 | 1.40 | 5.70 | |
1x0.75 | 11/SB | 1.00 | 24.70 | 0.20 | 1.40 | 1.60 | 7.60 | |
1x1.25 | 16/SB | 1.40 | 14.90 | 0.20 | 1.80 | 2.00 | 12.40 | |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request. |
