Dead-end for Medium /Long Span ADSS

Dead-end for Medium Span ADSS in tension and large tension Clamp material for aluminum-clad steel wire, mainly used for files larger than 100 meters away from the corner tower, the middle tower and Terminal Tower successive connection.

Pictures and illustrations:

1.U-Clevis    2.PH-Link    3.Thimble    4.Dead-end Component    5.Structural Reinforcing Rods

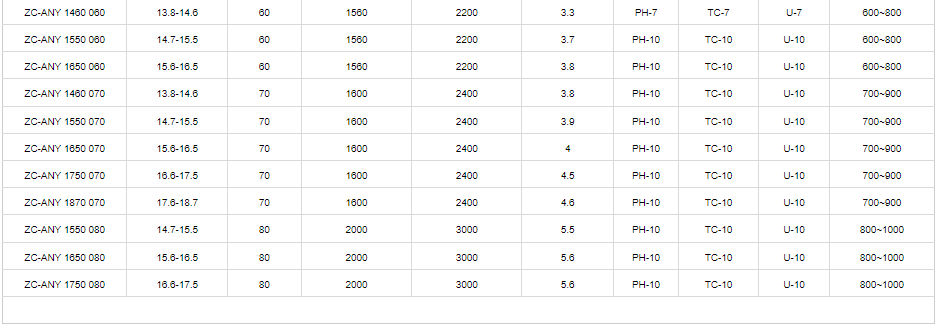

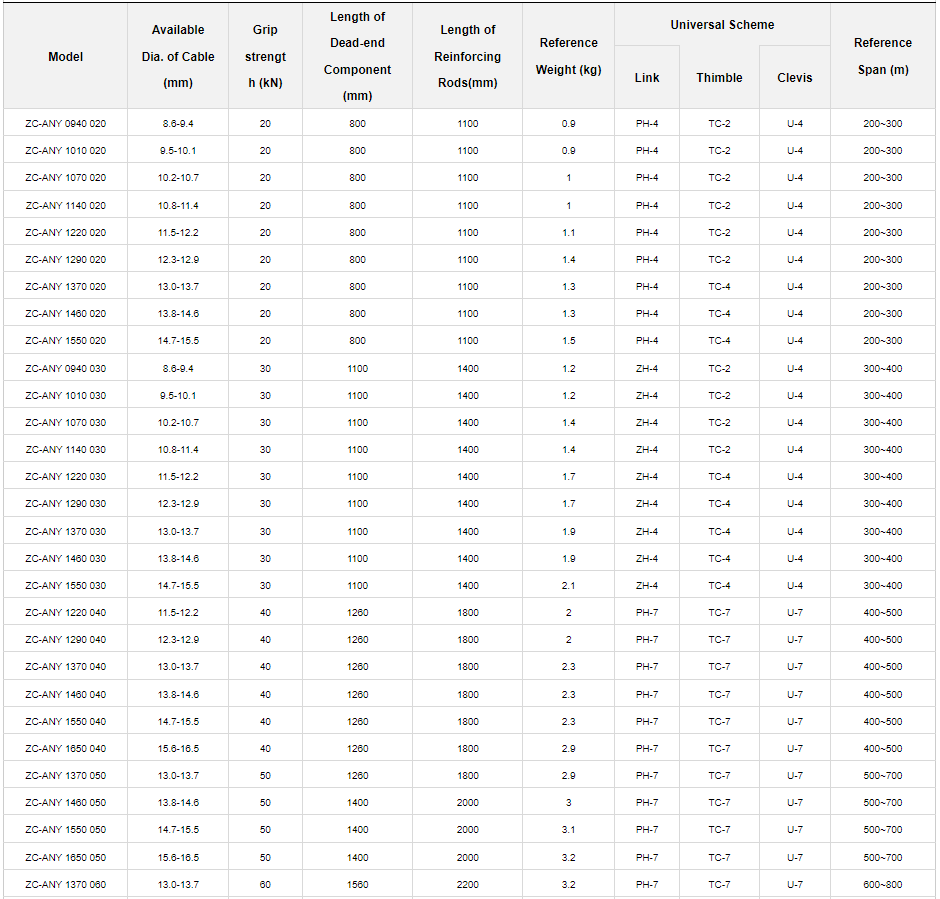

Model Specification:

Model

Available
Dia. of Cable (mm)

Grip strengt
h (kN)

Length of
Dead-end
Component (mm)

Length of Reinforcing Rods(mm)

Reference Weight (kg)

Universal Scheme

Reference
Span (m)

Link

Thimble

Clevis

ZC-ANY 0940 020

8.6-9.4

20

800

1100

0.9

PH-4

TC-2

U-4

200~300

ZC-ANY 1010 020

9.5-10.1

20

800

1100

0.9

PH-4

TC-2

U-4

200~300

ZC-ANY 1070 020

10.2-10.7

20

800

1100

1

PH-4

TC-2

U-4

200~300

ZC-ANY 1140 020

10.8-11.4

20

800

1100

1

PH-4

TC-2

U-4

200~300

ZC-ANY 1220 020

11.5-12.2

20

800

1100

1.1

PH-4

TC-2

U-4

200~300

ZC-ANY 1290 020

12.3-12.9

20

800

1100

1.4

PH-4

TC-2

U-4

200~300

ZC-ANY 1370 020

13.0-13.7

20

800

1100

1.3

PH-4

TC-4

U-4

200~300

ZC-ANY 1460 020

13.8-14.6

20

800

1100

1.3

PH-4

TC-4

U-4

200~300

ZC-ANY 1550 020

14.7-15.5

20

800

1100

1.5

PH-4

TC-4

U-4

200~300

ZC-ANY 0940 030

8.6-9.4

30

1100

1400

1.2

ZH-4

TC-2

U-4

300~400

ZC-ANY 1010 030

9.5-10.1

30

1100

1400

1.2

ZH-4

TC-2

U-4

300~400

ZC-ANY 1070 030

10.2-10.7

30

1100

1400

1.4

ZH-4

TC-2

U-4

300~400

ZC-ANY 1140 030

10.8-11.4

30

1100

1400

1.4

ZH-4

TC-2

U-4

300~400

ZC-ANY 1220 030

11.5-12.2

30

1100

1400

1.7

ZH-4

TC-4

U-4

300~400

ZC-ANY 1290 030

12.3-12.9

30

1100

1400

1.7

ZH-4

TC-4

U-4

300~400

ZC-ANY 1370 030

13.0-13.7

30

1100

1400

1.9

ZH-4

TC-4

U-4

300~400

ZC-ANY 1460 030

13.8-14.6

30

1100

1400

1.9

ZH-4

TC-4

U-4

300~400

ZC-ANY 1550 030

14.7-15.5

30

1100

1400

2.1

ZH-4

TC-4

U-4

300~400

ZC-ANY 1220 040

11.5-12.2

40

1260

1800

2

PH-7

TC-7

U-7

400~500

ZC-ANY 1290 040

12.3-12.9

40

1260

1800

2

PH-7

TC-7

U-7

400~500

ZC-ANY 1370 040

13.0-13.7

40

1260

1800

2.3

PH-7

TC-7

U-7

400~500

ZC-ANY 1460 040

13.8-14.6

40

1260

1800

2.3

PH-7

TC-7

U-7

400~500

ZC-ANY 1550 040

14.7-15.5

40

1260

1800

2.3

PH-7

TC-7

U-7

400~500

ZC-ANY 1650 040

15.6-16.5

40

1260

1800

2.9

PH-7

TC-7

U-7

400~500

ZC-ANY 1370 050

13.0-13.7

50

1260

1800

2.9

PH-7

TC-7

U-7

500~700

ZC-ANY 1460 050

13.8-14.6

50

1400

2000

3

PH-7

TC-7

U-7

500~700

ZC-ANY 1550 050

14.7-15.5

50

1400

2000

3.1

PH-7

TC-7

U-7

500~700

ZC-ANY 1650 050

15.6-16.5

50

1400

2000

3.2

PH-7

TC-7

U-7

500~700

ZC-ANY 1370 060

13.0-13.7

60

1560

2200

3.2

PH-7

TC-7

U-7

600~800

ZC-ANY 1460 060

13.8-14.6

60

1560

2200

3.3

PH-7

TC-7

U-7

600~800

ZC-ANY 1550 060

14.7-15.5

60

1560

2200

3.7

PH-10

TC-10

U-10

600~800

ZC-ANY 1650 060

15.6-16.5

60

1560

2200

3.8

PH-10

TC-10

U-10

600~800

ZC-ANY 1460 070

13.8-14.6

70

1600

2400

3.8

PH-10

TC-10

U-10

700~900

ZC-ANY 1550 070

14.7-15.5

70

1600

2400

3.9

PH-10

TC-10

U-10

700~900

ZC-ANY 1650 070

15.6-16.5

70

1600

2400

4

PH-10

TC-10

U-10

700~900

ZC-ANY 1750 070

16.6-17.5

70

1600

2400

4.5

PH-10

TC-10

U-10

700~900

ZC-ANY 1870 070

17.6-18.7

70

1600

2400

4.6

PH-10

TC-10

U-10

700~900

ZC-ANY 1550 080

14.7-15.5

80

2000

3000

5.5

PH-10

TC-10

U-10

800~1000

ZC-ANY 1650 080

15.6-16.5

80

2000

3000

5.6

PH-10

TC-10

U-10

800~1000

ZC-ANY 1750 080

16.6-17.5

80

2000

3000

5.6

PH-10

TC-10

U-10

800~1000
