Dead-end for Short Span ADSS
hellosignal
Optical Fiber cable Hardware
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Availability: | |
---|---|
Specification
Dead-end for Short Span ADSS | |||||||||||||||||||||||||
Dead-end for Short Span ADSS with a small Tension Clamp material for aluminum-clad steel wire, mainly used for the corner towers, the middle of follow-tower and connecting the terminal tower, the largest installation file from the less than 100 meters. | |||||||||||||||||||||||||
Pictures and illustrations: | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
1.U-Clevis 2.Thimble 3.Helical Dead-end | |||||||||||||||||||||||||

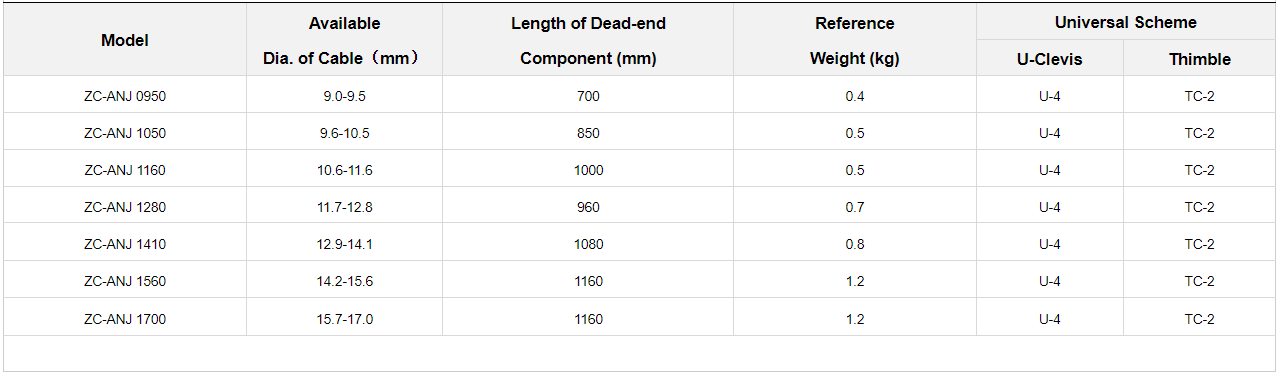

Model Specification: | |||||||||||||||||||||||||
Model | Available | Length of Dead-end | Reference | Universal Scheme | |||||||||||||||||||||
U-Clevis | Thimble | ||||||||||||||||||||||||
ZC-ANJ 0950 | 9.0-9.5 | 700 | 0.4 | U-4 | TC-2 | ||||||||||||||||||||
ZC-ANJ 1050 | 9.6-10.5 | 850 | 0.5 | U-4 | TC-2 | ||||||||||||||||||||
ZC-ANJ 1160 | 10.6-11.6 | 1000 | 0.5 | U-4 | TC-2 | ||||||||||||||||||||
ZC-ANJ 1280 | 11.7-12.8 | 960 | 0.7 | U-4 | TC-2 | ||||||||||||||||||||
ZC-ANJ 1410 | 12.9-14.1 | 1080 | 0.8 | U-4 | TC-2 | ||||||||||||||||||||
ZC-ANJ 1560 | 14.2-15.6 | 1160 | 1.2 | U-4 | TC-2 | ||||||||||||||||||||
ZC-ANJ 1700 | 15.7-17.0 | 1160 | 1.2 | U-4 | TC-2 | ||||||||||||||||||||
