CU/XLPE/PVC/SWA/PVC 0.6/1KV Cable(25mm²-400mm²)

CU/XLPE/PVC/SWA/PVC 0.6/1KV Cable(25mm²-400mm²)

Application:

Cable Standards:

Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

Flame propagation to BS EN 60332-1-2

BS5467

IEC/EN 60502-1

IEC/EN 60228

Product Description:

Conductor

Class 2 stranded copper conductor acc BS EN 60228 (previously BS 6360)

Insulation

Cross linked Polyethylene (XLPE)

Bedding

Polyvinyl Chloride (PVC)

Armour

Steel Wire Armour (SWA)

Sheath

Polyvinyl Chloride PVC

Characteristics:

Voltage Rating

600/1000 Volts

Temperature Limits

-15°C to +90°C

Core Identification:

2 Core

Brown

Blue

3 Core

Brown

Black

Grey

4 Core

Brown

Black

Black

Grey

5 Core

Brown

Black

Black

Grey

G/Y

7 Core and above

White cores with black numbers

Should not be installed at temperatures below 0°C  or above +60°C

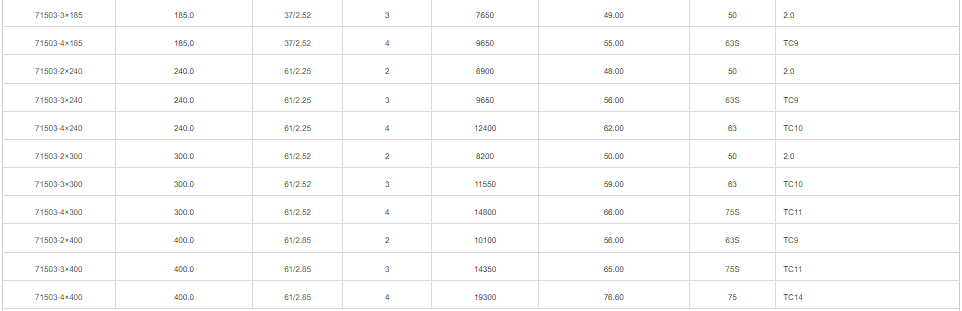

Dimensions(25mm²-400mm²):

Zion Code

Conductor Size (mm2)

Stranding (mm)

No. Of
Cores

Weight Kg/km

Overall
Diameter (mm)

Gland Size (mm)

Nylon
Cleat

71503-2×25

25.0

7/2.14

2

1050

20.00

25

0.8

71503-3×25

25.0

7/2.14

3

1500

23.00

25

1.0

71503-4×25

25.0

7/2.14

4

1800

25.00

32

1.0

71503-5×25

25.0

7/2.14

5

2200

29.00

32

1.2

71503-2×35

35.0

7/2.52

2

1400

22.00

25

0.9

71503-3×35

35.0

7/2.52

3

1800

26.00

32

1.1

71503-4×35

35.0

7/2.52

4

2200

28.00

32

1.2

71503-5×35

35.0

7/2.52

5

2800

33.00

40

1.4

71503-2×50

50.0

19/1.78

2

1750

25.00

32

1.0

71503-3×50

50.0

19/1.78

3

2250

28.00

32

1.2

71503-4×50

50.0

19/1.78

4

2850

31.00

32

1.4

71503-5×50

50.0

19/1.78

5

3850

38.00

40

1.6

71503-2×70

70.0

19/2.14

2

2200

28.00

32

1.2

71503-3×70

70.0

19/2.14

3

3000

32.00

32

1.4

71503-4×70

70.0

19/2.14

4

4100

37.00

40

1.6

71503-5×70

70.0

19/2.14

5

5100

43.00

50s

1.8

71503-2×95

95.0

19/2.52

2

3000

32.00

40

1.4

71503-3×95

95.0

19/2.52

3

4150

37.00

40

1.6

71503-4×95

95.0

19/2.52

4

5200

40.00

50s

1.8

71503-5×95

95.0

19/2.52

5

7700

52.00

50

TC9

71503-2×120

120.0

37/2.03

2

3600

35.00

40

1.4

71503-3×120

120.0

37/2.03

3

4950

40.00

50s

1.8

71503-4×120

120.0

37/2.03

4

6700

46.00

50

2.0

71503-5×120

120.0

37/2.03

5

9030

57.00

63S

TC9

71503-2×150

150.0

37/2.25

2

4250

37.00

40

1.6

71503-3×150

150.0

37/2.25

3

6300

45.00

50

1.8

71503-4×150

150.0

37/2.25

4

7900

49.00

50

2.0

71503-5×150

150.0

37/2.25

5

10430

61.00

63

TC11

71503-2×185

185.0

37/2.52

2

5500

43.00

50

1.8

71503-3×185

185.0

37/2.52

3

7650

49.00

50

2.0

71503-4×185

185.0

37/2.52

4

9650

55.00

63S

TC9

71503-2×240

240.0

61/2.25

2

6900

48.00

50

2.0

71503-3×240

240.0

61/2.25

3

9650

56.00

63S

TC9

71503-4×240

240.0

61/2.25

4

12400

62.00

63

TC10

71503-2×300

300.0

61/2.52

2

8200

50.00

50

2.0

71503-3×300

300.0

61/2.52

3

11550

59.00

63

TC10

71503-4×300

300.0

61/2.52

4

14800

66.00

75S

TC11

71503-2×400

400.0

61/2.85

2

10100

56.00

63S

TC9

71503-3×400

400.0

61/2.85

3

14350

65.00

75S

TC11

71503-4×400

400.0

61/2.85

4

19300

76.60

75

TC14

Current Carrying (amperes)

CONDUCTOR CROSS
– SECTIONAL  AREA

REFERENCE METHOD C
(CLIPPED DIRECT)

REFERENCE METHOD E
(IN FREE AIR OR ON A PERFORATED CABLE TRAY,  HORIZONTAL OR VERTICAL)

REFERENCE METHOD D
(DIRECT IN GROUND OR IN DUCTING IN GROUND,
IN OR AROUND BUILDINGS)

1 TWO CORE CABLE
SINGLE-PHASE AC OR DC

1 THREE OR
1 FOUR CORE CABLE
THREE-PHASE AC

1 TWO CORE CABLE SINGLE-PHASE
AC OR DC

1 THREE OR
1 FOUR CORE CABLE THREE-PHASE AC

1 TWO CORE CABLE SINGLE-PHASE
AC OR DC

1 THREE OR
1 FOUR CORE CABLE THREE-PHASE AC

1

2

3

4

5

6

7

(MM²)

(A)

(A)

(A)

(A)

(A)

(A)

25

146

124

152

131

116

96

35

180

154

188

162

139

115

50

219

187

228

197

164

135

70

279

238

291

251

203

167

95

338

289

354

304

239

197

120

392

335

410

353

271

223

150

451

386

472

406

306

251

185

515

441

539

463

343

281

240

607

520

636

546

395

324

300

698

599

732

628

446

365

400

787

673

847

728

-

-

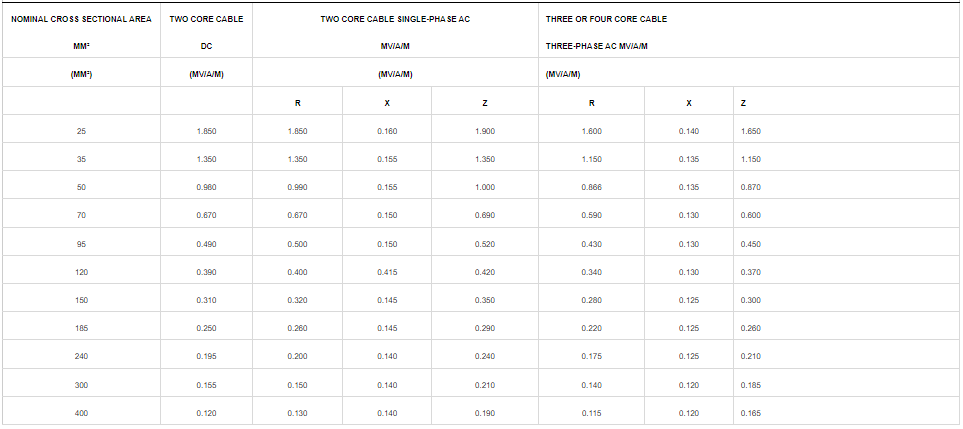

Voltage Drop

NOMINAL CROSS SECTIONAL AREA MM²

TWO CORE CABLE DC

TWO CORE CABLE SINGLE-PHASE AC
MV/A/M

THREE OR FOUR CORE CABLE
THREE-PHASE AC MV/A/M

(MM²)

(MV/A/M)

(MV/A/M)

(MV/A/M)

R

X

Z

R

X

Z

25

1.850

1.850

0.160

1.900

1.600

0.140

1.650

35

1.350

1.350

0.155

1.350

1.150

0.135

1.150

50

0.980

0.990

0.155

1.000

0.866

0.135

0.870

70

0.670

0.670

0.150

0.690

0.590

0.130

0.600

95

0.490

0.500

0.150

0.520

0.430

0.130

0.450

120

0.390

0.400

0.415

0.420

0.340

0.130

0.370

150

0.310

0.320

0.145

0.350

0.280

0.125

0.300

185

0.250

0.260

0.145

0.290

0.220

0.125

0.260

240

0.195

0.200

0.140

0.240

0.175

0.125

0.210

300

0.155

0.150

0.140

0.210

0.140

0.120

0.185

400

0.120

0.130

0.140

0.190

0.115

0.120

0.165
